ASM program to Overlapped and Non-Overlapped block transfer

Problem Statement:

ASM program to Overlapped and Non-Overlapped block transfer with and without String instruction




Code:-


%macro scall 4                    ;macro to take input and output
        mov rax,%1
        mov rdi,%2
        mov rsi,%3
        mov rdx,%4
        syscall
%endmacro

Section .data
title:  db 0x0A,"------- BLock Transfer -----------",0x0A
 db "1. Non Overlapped", 0x0A
 db "2. Non-Overlapped with String Instruction",0x0A
 db "3. Overlapped", 0x0A
 db "4. Overlapped with String Instruction",0x0A
 db "5. Exit",0x0A
 db "Enter your choice: ",0x0A
t_len: equ $-title
copy: db 0x0A,0x0A," Copied data",
copy_len: equ $-copy
newline: db 0x0A
colon:db " : "
colon_len: equ $-colon

cnt_a: db 05H
cnt_a2:db 05H
cnt :db 05H
cnt2:db 05H

array: db 10H,20H,30H,40H,50H ;data to be transferred
;------------- BSS Section --------------------------
Section .bss
address: resb 16
val: resb 2
copied: resb 5
choice: resb 2

;------------- MAIN CODE Section --------------------------
Section .text
global _start
_start:
scall 1,1,title,t_len
scall 0,0,choice,2 ;read choice

cmp byte[choice],'5' ;if choice==5 then exit
je EXIT

;------------- Print Source Array ADDRESS: VALUE ---------------
mov byte[cnt_a],05h
mov rsi,array

label1:
 push rsi
 mov rbx,rsi
 mov rdi,address
 call HtoA_address
 scall 1,1,newline,1
 scall 1,1,address,16
 scall 1,1,colon,colon_len
 pop rsi
 mov bl,byte[rsi]
 push rsi
 mov rdi,val
 call HtoA_value
 scall 1,1,val,2
 pop rsi
 inc rsi
 dec byte[cnt_a]
 jnz label1

;------------- CHOOSE OPTION --------------------------
;compare choice here
cmp byte[choice],'1'
JE  NONOVERLAPPED
cmp byte[choice],'2'
je  NONOVERLAPPED_STR
cmp byte[choice],'3'
je OVERLAPPED
cmp byte[choice],'4'
je OVERLAPPED_STR


;------Non overlapped copying without string instruction------
NONOVERLAPPED:
;---- Initializaion of starting addresses
 mov byte[cnt_a2],5H
 mov rsi,array
 mov rdi,array+20H
label2:
 mov cl,00H
 mov cl,byte[rsi]
 mov byte[rdi],cl
 inc rsi
 inc rdi

 dec byte[cnt_a2]
 jnz label2
 jmp OUTPUT

;------non overlapped with string instruction----------------
NONOVERLAPPED_STR:
 mov byte[cnt_a2],5H
 mov rsi,array
 mov rdi,array+20H
label4:
 MOVSB
 dec byte[cnt_a2]
 jnz label4
 jmp OUTPUT
;------overlapped without string instruction----------------
OVERLAPPED:
;---- Initializaion of starting addresses
 mov byte[cnt_a2],3H
 mov rsi,array
 mov rdi,array+3H
label5:
 mov cl,00H
 mov cl,byte[rsi]
 mov byte[rdi],cl
 inc rsi
 inc rdi

 dec byte[cnt_a2]
 jnz label5
 jmp OUTPUT1

;------non overlapped with string instruction----------------
OVERLAPPED_STR:
 mov byte[cnt_a2],03H
 mov rsi,array
 mov rdi,array+03H
label6:
 MOVSB
 dec byte[cnt_a2]
 jnz label6
 jmp OUTPUT1
;------OUTPUT of Non-Overlapped ----------------
OUTPUT:
 scall 1,1,copy,copy_len

 mov byte[cnt_a],05H
 mov rsi,array+20H
 jmp label3
;------OUTPUT of Overlapped ----------------
OUTPUT1:
 scall 1,1,copy,copy_len

 mov byte[cnt_a],06H
 mov rsi,array
;------Printig ADDRESS:VALUE OF COPIED DATA ----------------
label3:
 push rsi
 mov rbx,rsi
 mov rdi,address
 call HtoA_address
 scall 1,1,newline,1
 scall 1,1,address,16
 scall 1,1,colon,colon_len
 pop rsi
 mov bl,byte[rsi]
 push rsi
 mov rdi,val
 call HtoA_value
 scall 1,1,val,2
 pop rsi
 inc rsi
 dec byte[cnt_a]
 jnz label3
 ;jmp to start of program
 jmp _start

EXIT:
 mov rax,60
 mov rdi,0
 syscall
;------HEX TO ASCII CONVERSION METHOD FOR ADDRESS ----------------
HtoA_address: ;hex_no to be converted is in ebx //result is stored in rdi/user defined variable
mov byte[cnt2],10H
aup:
rol rbx,04
mov cl,bl
and cl,0FH
cmp cl,09H
jbe ANEXT
ADD cl,07H
ANEXT:
add cl, 30H
mov byte[rdi],cl
INC rdi
dec byte[cnt2]
JNZ aup
ret
;------HEX TO ASCII CONVERSION METHOD FOR VALUE(2 DIGIT) ----------------
HtoA_value: ;hex_no to be converted is in ebx //result is stored in rdi/user defined variable
mov byte[cnt2],02H
aup1:
rol bl,04
mov cl,bl
and cl,0FH
CMP CL,09H
jbe ANEXT1
ADD cl,07H
ANEXT1:
add cl, 30H
mov byte[rdi],cl
INC rdi
dec byte[cnt2]
JNZ aup1
ret

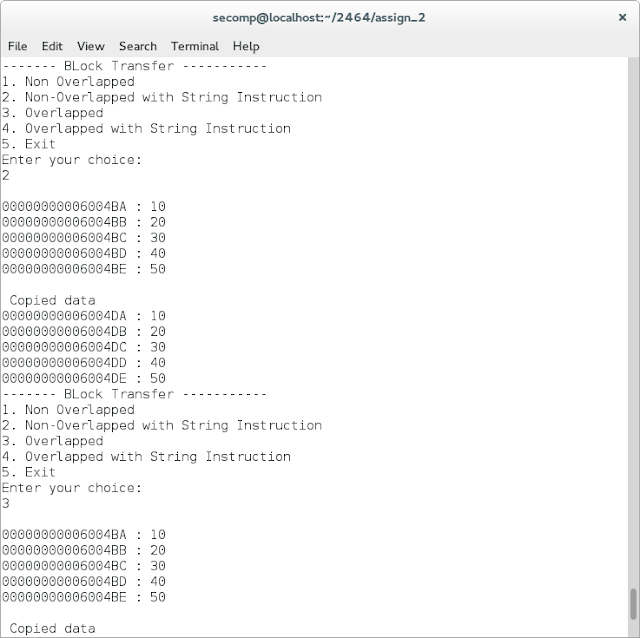

Output:-
